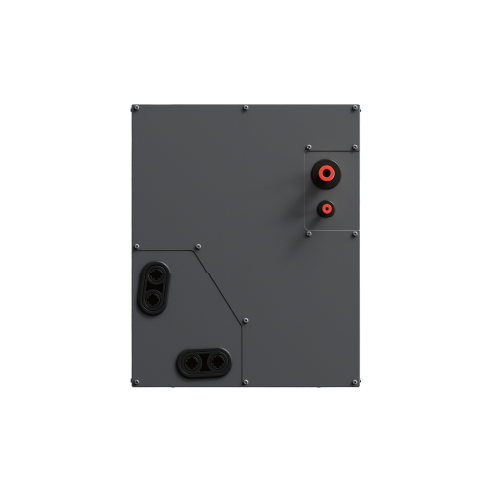

Midea EVOX 3 ton Cased Coil R454B

3 Ton 36,000 btu MAAHE Muiti Position Case Coil with TXV

Model#: MAAHE-H36B-BA

New aluminum coil for improved performance.
M Shaped Coil

High Efficiency Heat Exchanger

Automatic airflow technology, supporting static pressure up to 0.8 inWG.
Less than 2% air leakage for efficiency.
Easy maintenance design for convenience.

Technical Specifications

Refrigerant(ASHRAE)

R454B

Brand

Midea

Coil Type

Case Coil

Colour

Gray

Connection-Liquid(OD)

3/8

Connection-Vapour/Gas(OD)

3/4

Unit Location

Indoor

Country of Origin

China

Product Length/Depth

20.98 in

Product Height

23.98 in

Product Weight

60 lbs

Product Width

17.52 in

System Type

Central Ducted

Zone Type

Single

Nominal Capacity

36,000

Tons

Documents

MAAHE-H36B-BA & MO1HE-H30B-2A Submittal (Dual-Fuel System (Coil) / Extreme Heat / Cased Coil)

PDF

MAAHE-H36B-BA & MO1BE-H36B-2A Submittal (Dual-Fuel System (Coil) / Advanced Heat)

PDF

MAAHE-H36B-BA & MO1BE-H30B-2A Submittal (Dual-Fuel System (Coil) / Advanced Heat)

PDF

MAAHE-H36B-BA & MO1AE-C36B-2A Submittal (Dual-Fuel System (Coil) / Cooling Only / Cased Coil)

PDF

MAAHE-H36B-BA & MO1AE-C30B-2A Submittal (Dual-Fuel System (Coil) / Cooling Only / Cased Coil)

PDF

A-Coil – Cased (MAAHE)

PDF

A-Coil – Homeowner

PDF

EVOX Family (previous version)

PDF

A-Coil – Homeowner (duplicate)

PDF

EVOX 3 ton Coil Submittal (previous version)

PDF

A-Coil – Cased (R454B, previous version)

PDF
