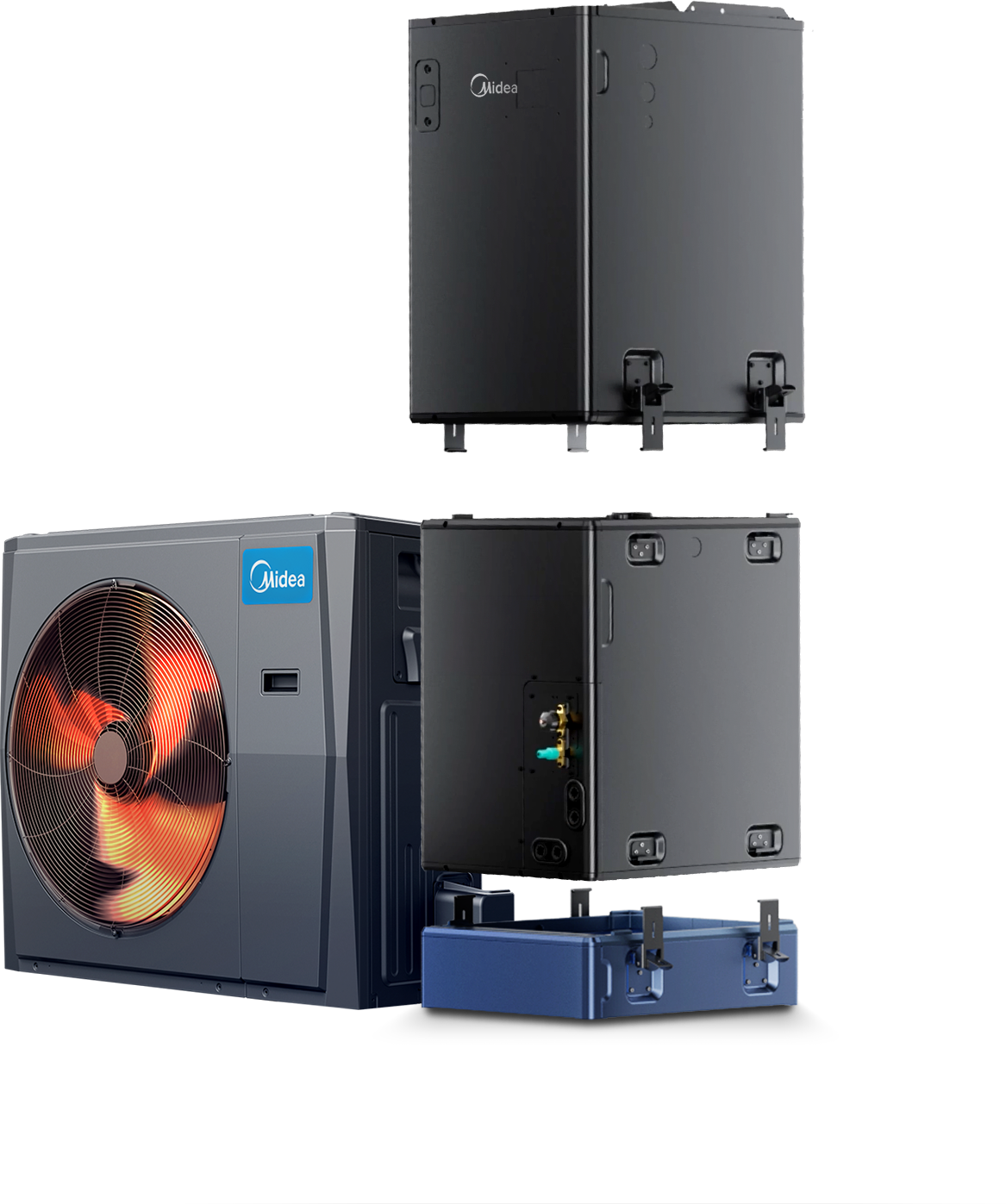

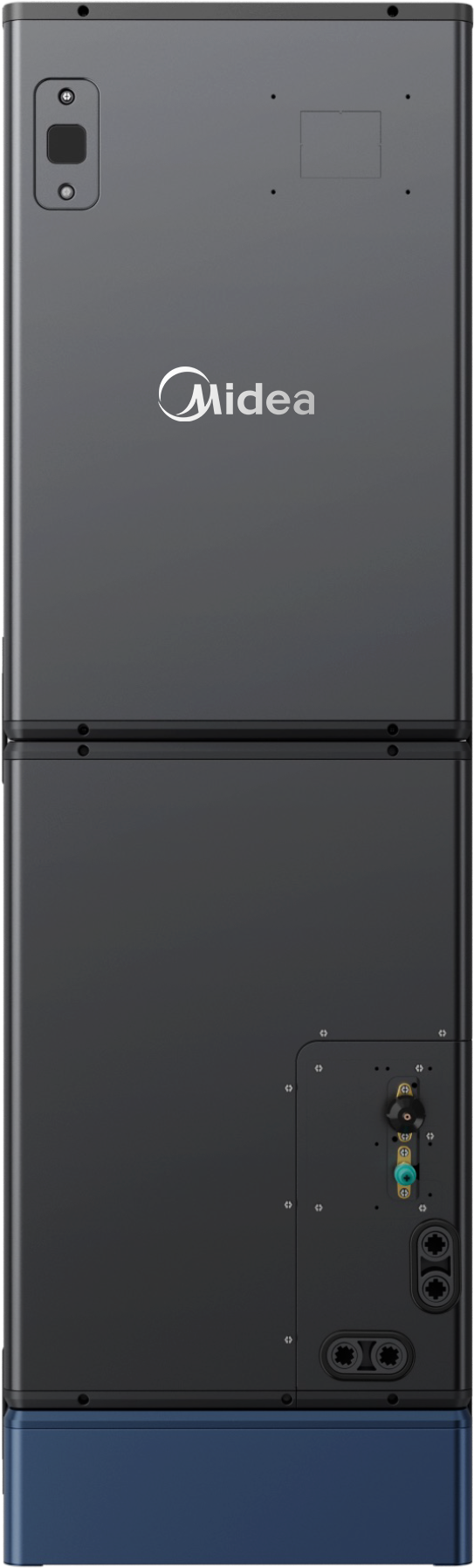

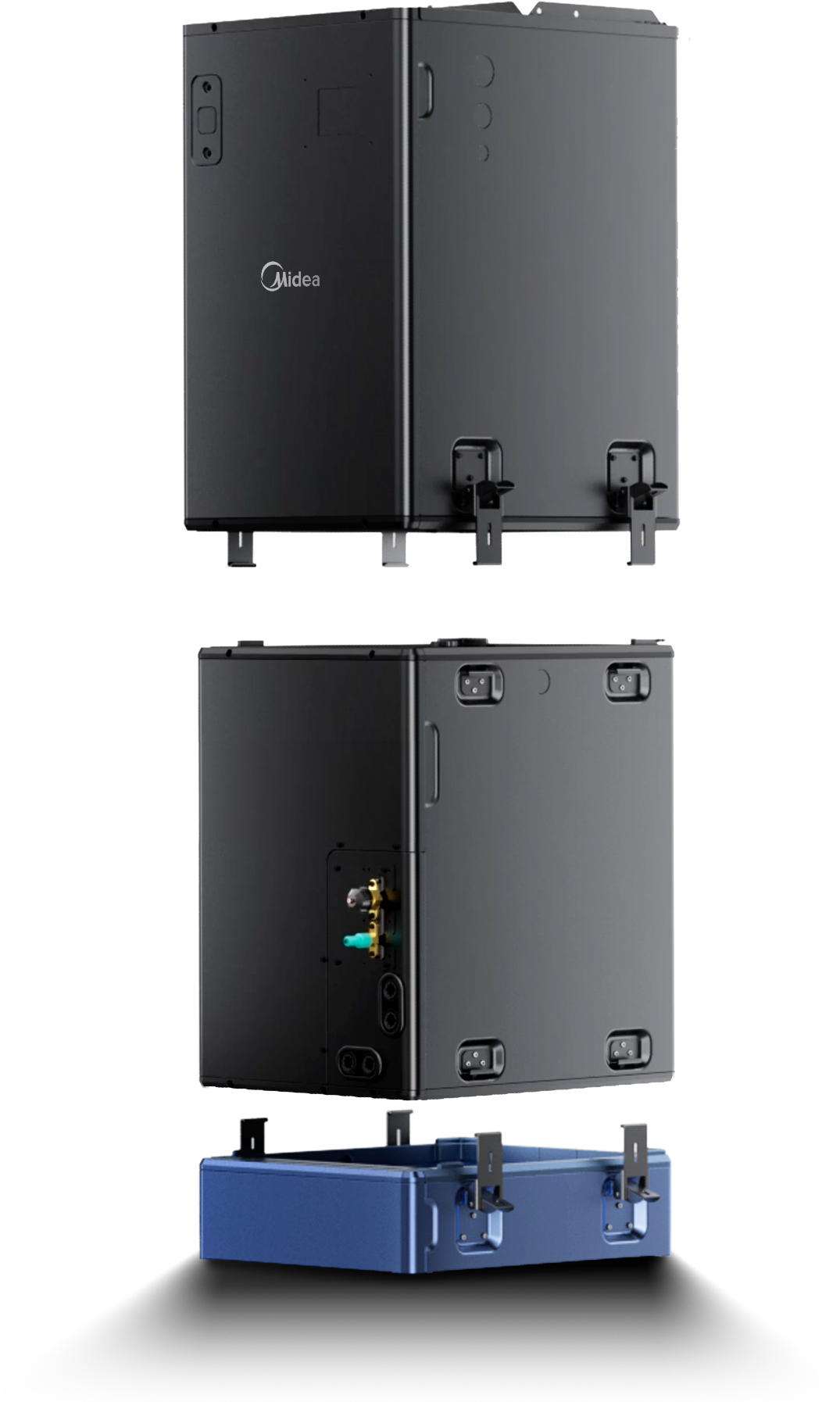

Midea Air Handler (G3) 2.5 TON R454B

EVOX G3 2.5 TON Air Handler 215471341

Model#: MAUSE- H30B-2A

Compatible with 485 or 24V: automatically identifying the control mode, no need for manual conversion.

Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c.

Electronic expansion valve (EEV) control: better throttling for highly efficient operation.

Optional auxiliary heat kits available up to 25kW.

All-Aluminum Coil.

Quiet-Operation - down to 35 dB(A) level.

Technical Specifications

Refrigerant(ASHRAE)

R454B

Brand

Midea

Coil Type

Case

Colour

Black

Connection-Liquid(OD)

3/8

Connection-Vapour/Gas(OD)

3/4

Unit Location

Indoor

Country of Origin

China

Product Length/Depth

21 in

Product Height

52 in

Product Weight

149 lbs

Product Width

17.5 in

System Type

AHU

Zone Type

Central Ducted

Nominal Capacity

30,000

Tons

2.5

Documents

R454B Brochure

PDF

AHU G3 Brochure

PDF

EVOX G3 User Manual

PDF

R454B Extreme Heat 2.5 ton Submittal

PDF

EVOX G3 R454B AHU Installation Manual

PDF
