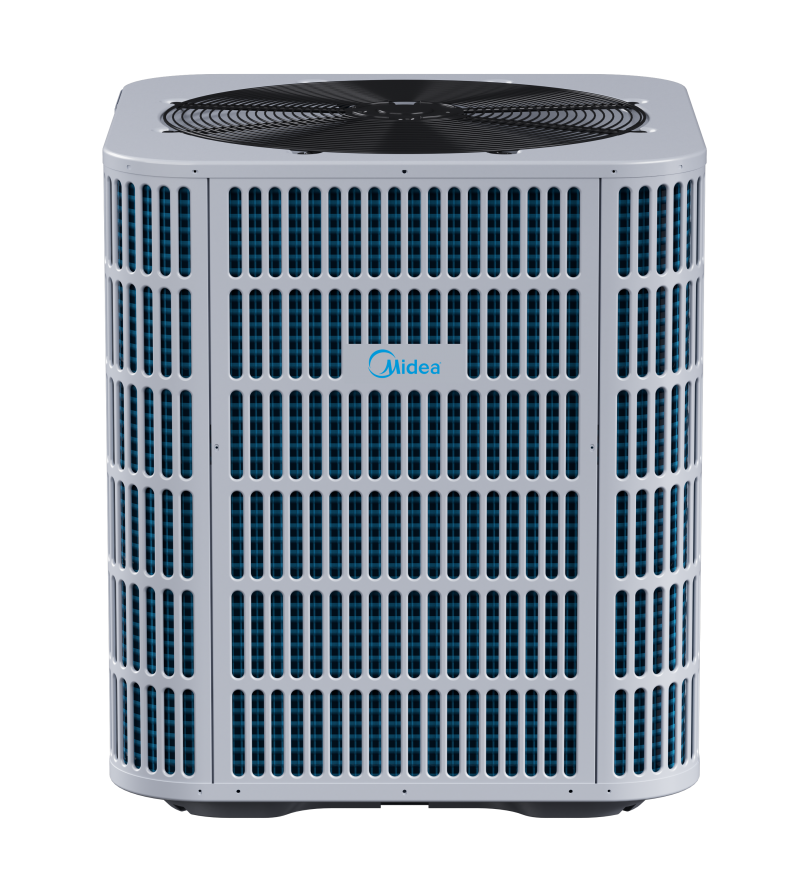

Midea 4 ton Air Conditioner
Midea 4 ton Air Conditioner

Midea 4 ton Air Conditioner

Compact design, easy installation and transportation
Model#: MOVA-48CN1-M134L
  • R410A chlorine-free refrigerant.

  • Energy-efficient compressor.

  • Internal protection against high-temperature motor overload.

  • High quality condenser with inner-groove copper tube and aluminum fin.

  • Service valves with sweat connections and easy-access gauge ports.

  • Factory-installed high pressure switch.

  • AHRI certified and ETL listed.

  • Optional filter drier accessory

  • Powder-painted galvanized steel cabinet.




Technical Specifications

Refrigerant(ASHRAE)
R410A
Brand
Midea
Fuse Size(MCA)
29.7 A
BTU Cooling(BTU/h)
48,000
Compressor Type
Scroll
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
7/8
Unit Location
Outdoor
Phase/Type
1/60Hz
Product Length/Depth
28 in
Product Height
33.19 in
Product Weight
189 lbs
Product Width
28 in
SEER2 Rating
13.4
System Type
Air Conditioner
Supply Voltage
208/230 V
Unit Type
Condenser
Zone Type
Central ducted
Nominal Capacity
48,000
Tons
4
Sound Level (dBA)
78 (sound power)
