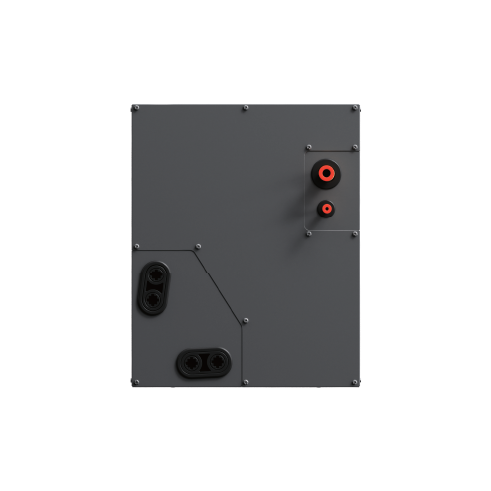

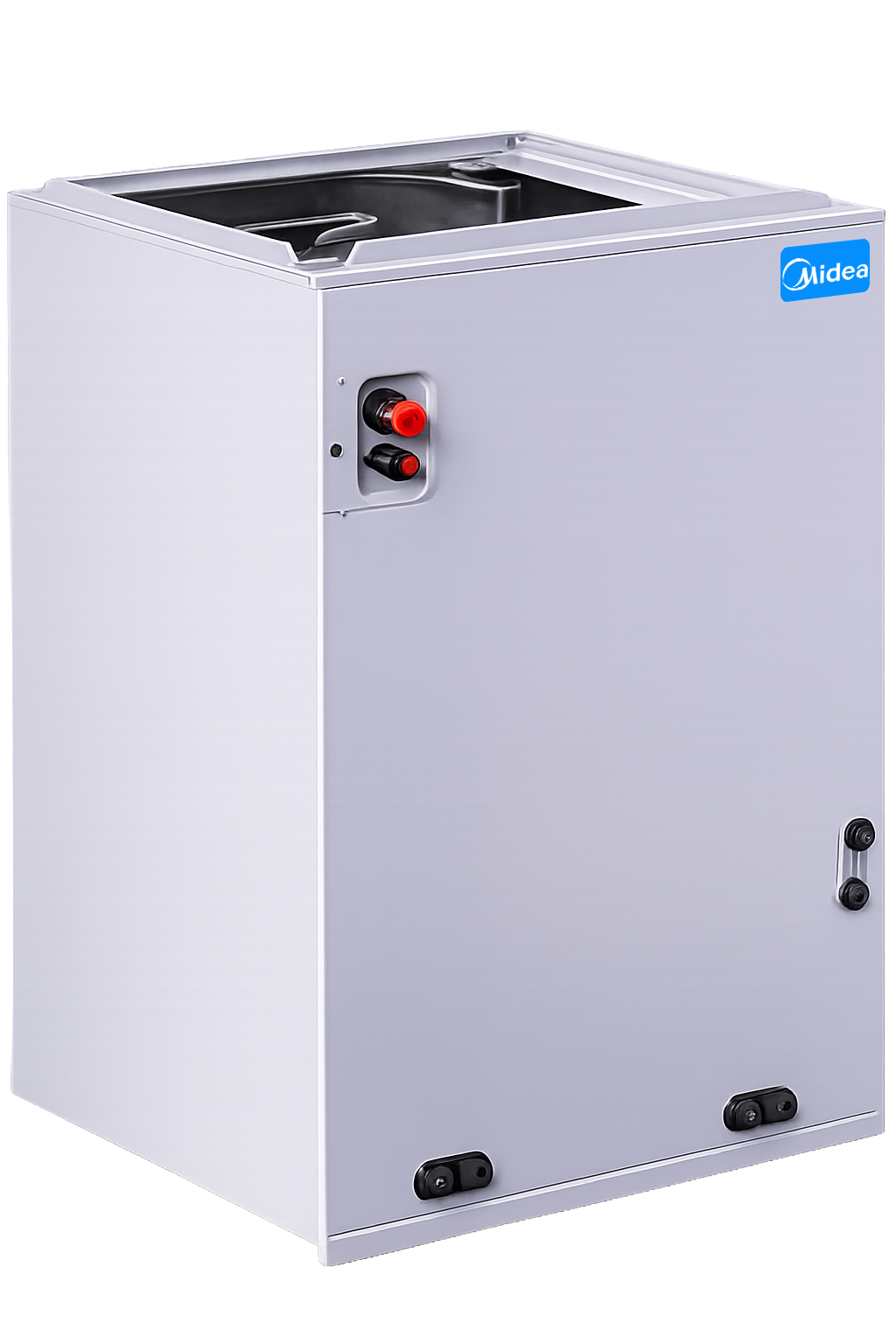

Midea 4 - 5 TON Cased Coil Piston R410A
Midea 4 - 5 TON Cased Coil Piston R410A

Midea 4 - 5 TON Cased Coil Piston R410A

Midea MCPM Series A Coil
Model#: MCPM4860CNOH
  • Multi-refrigerant: Coils are designed compatible with R410A and R22 refrigerant.

  • High quality heat-exchanger: Constructed of enhanced aluminum fins and internally grooved copper tubing.

  • Insulated cabinet: Evaporator coil cabinets are thermally insulated with foil faced insulation to prevent sweating.

  • Multi-position installation: Cased coil has two drain pans, and can satisfy multi-position installation.

  • Widely match: Cased & uncased a coils match Midea unitary products and many brand-name, popular gas furnaces and split system.


Technical Specifications

Refrigerant(ASHRAE)
R410A
Brand
Midea
Coil Type
Cased (Piston)
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
7/8
Unit Location
Indoor
Product Height
30 in
Product Weight
82 lbs
Product Width
21 in
System Type
Evaporator Coil
Zone Type
Central ducted
Nominal Capacity
48,000/60,000
Tons
4/5
