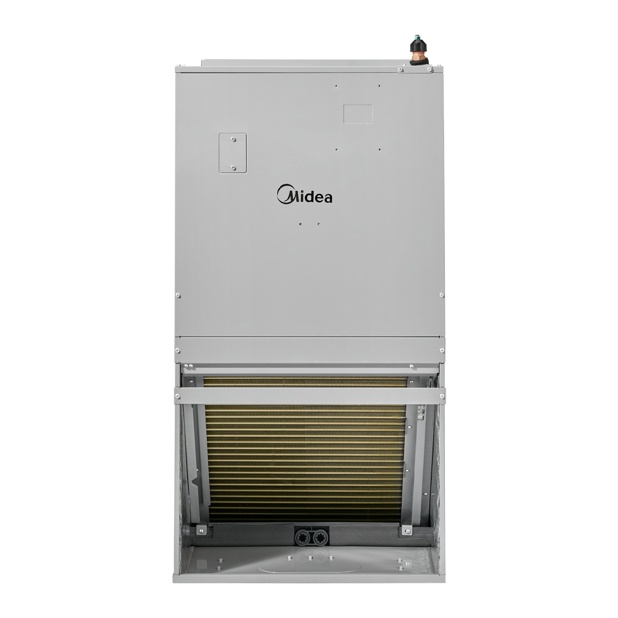

Midea EVOX 2 TON Wall Mount Air Handler
Midea EVOX 2 TON Wall Mount Air Handler

Midea EVOX 2 TON Wall Mount Air Handler

Easy to Service
Model#: MAWHE-H24B-2A
  • Easy-to-Access Design: Simply remove two screws for access to the error code display

  • Easy-to-Maintain Design: Easily take out the electrical board & fan motor without the need to dissemble the evaporate

  • Slide-Track Design: Easily remove the evaporate coil through the slide track from the front side

  • Full Front Access: No screws on the side

  • Slide-Out Design: A single action to insert or remove the filter


Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
3/4
Unit Location
Indoor
Product Length/Depth
15.75 in
Product Height
36.5 in
Product Weight
91 lbs
Product Width
20.25 in
System Type
Wall Mount AHU
Zone Type
Central ducted
Nominal Capacity
24,000
Tons
2
