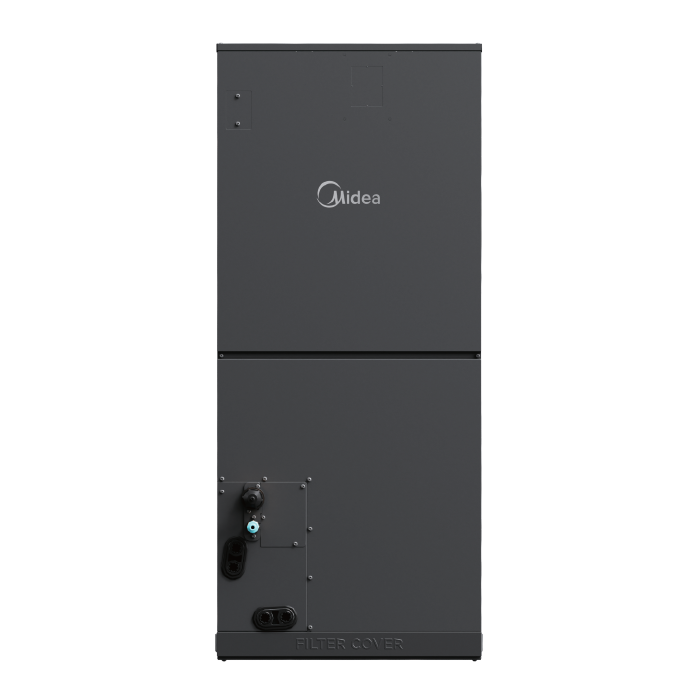

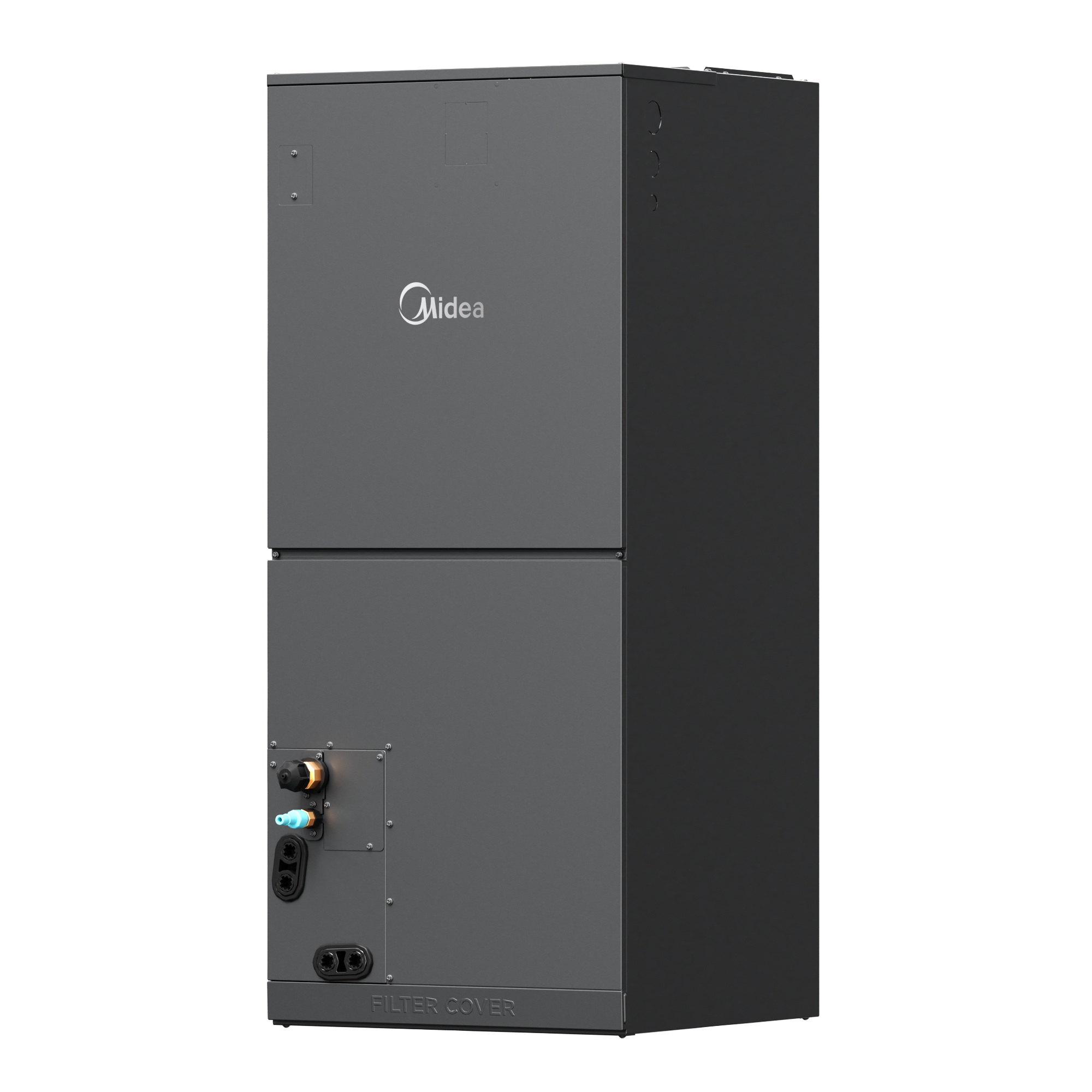

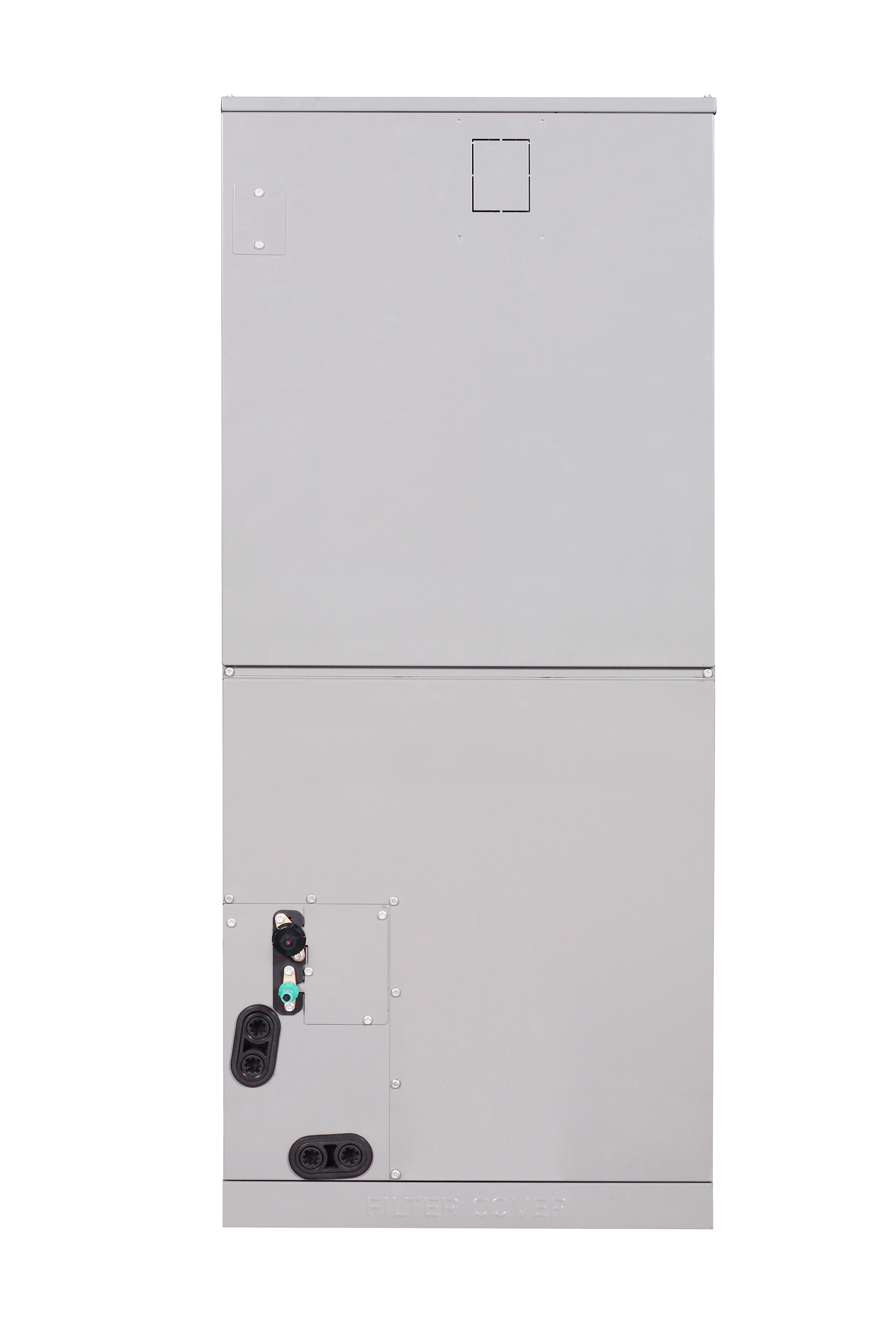

Midea EVOX (G2) 2.5 ton Air Handler R454B

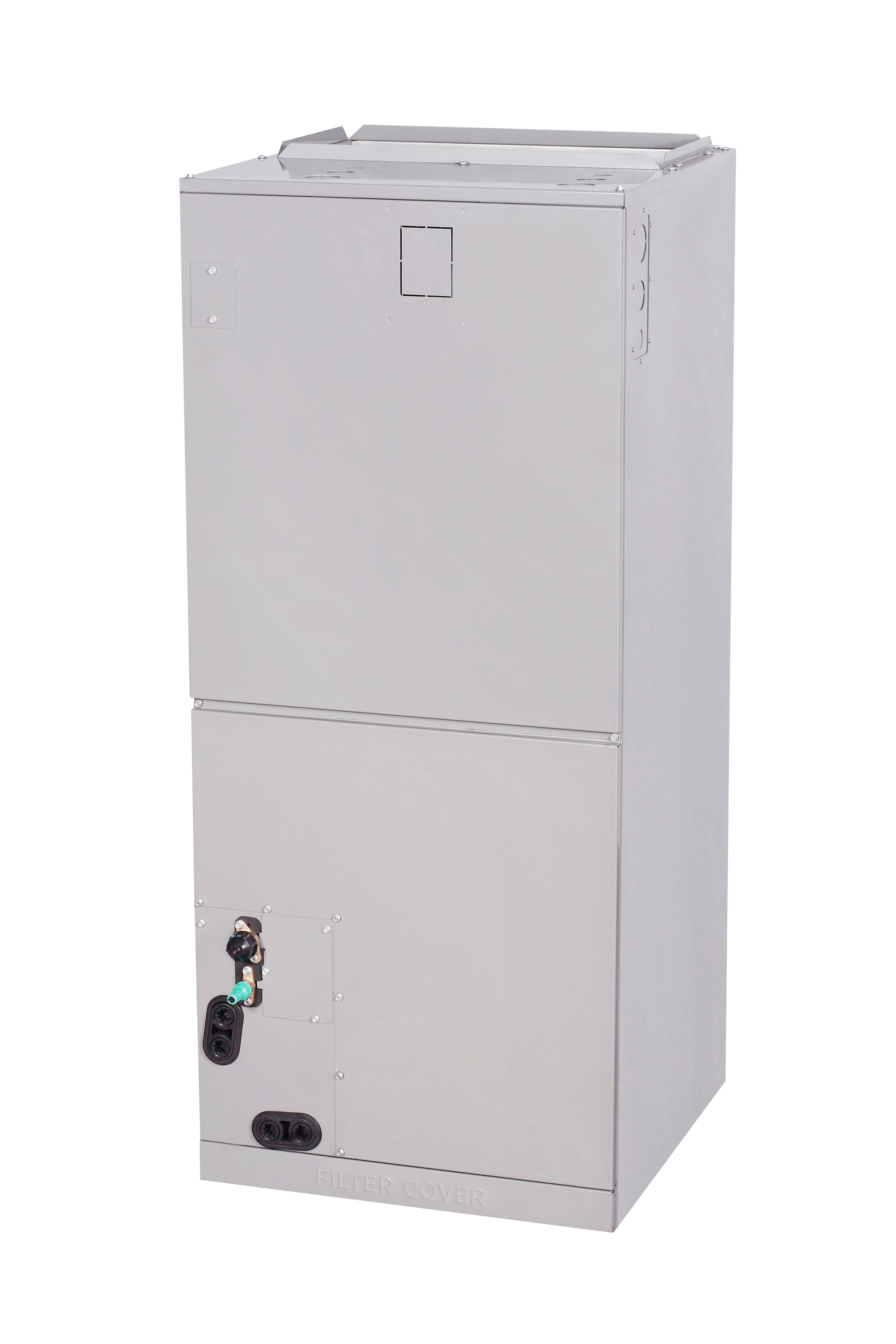

Midea EVOX (G2) 2.5 ton Air Handler R454B

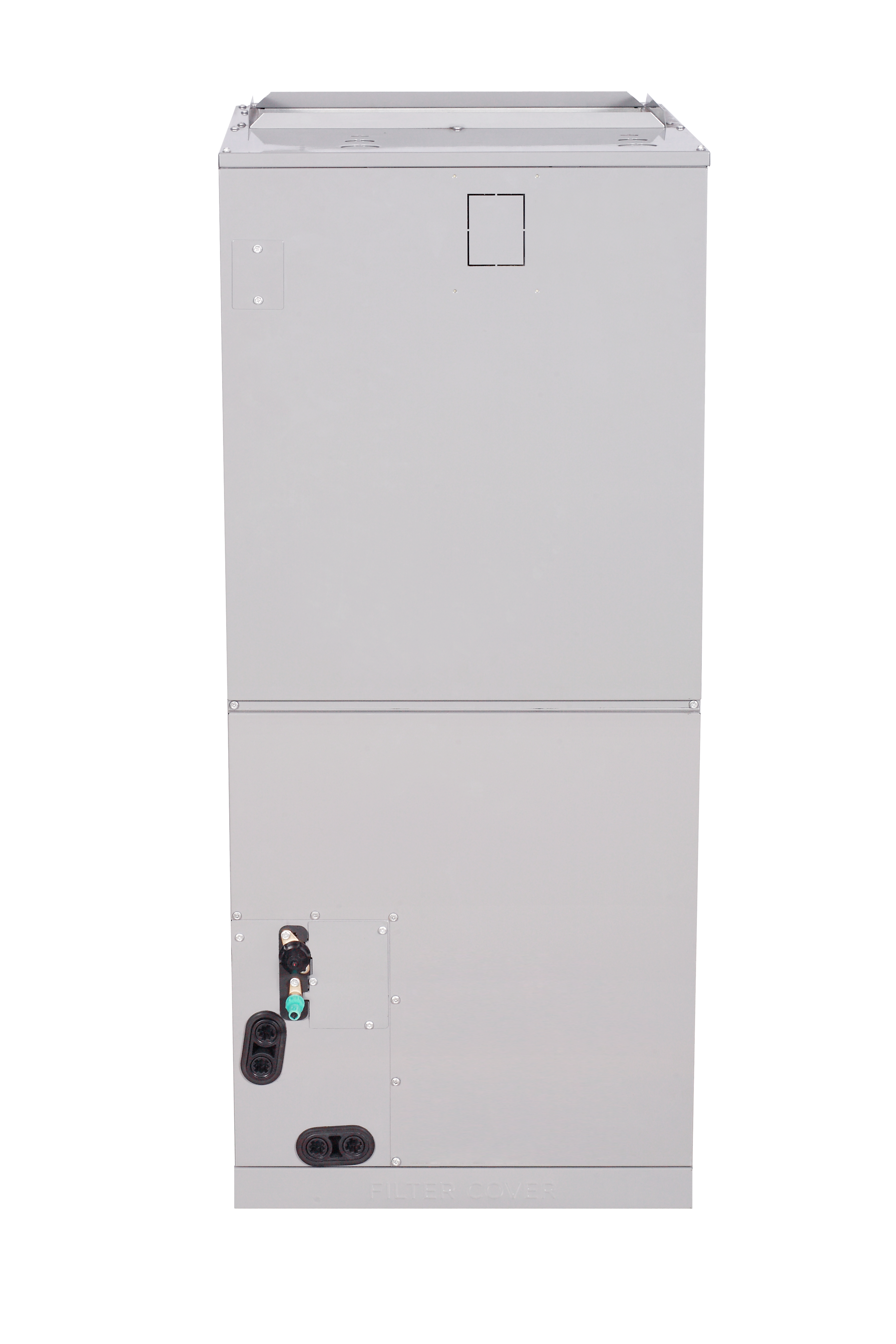

Midea EVOX (G2) 2.5 ton Air Handler R454B

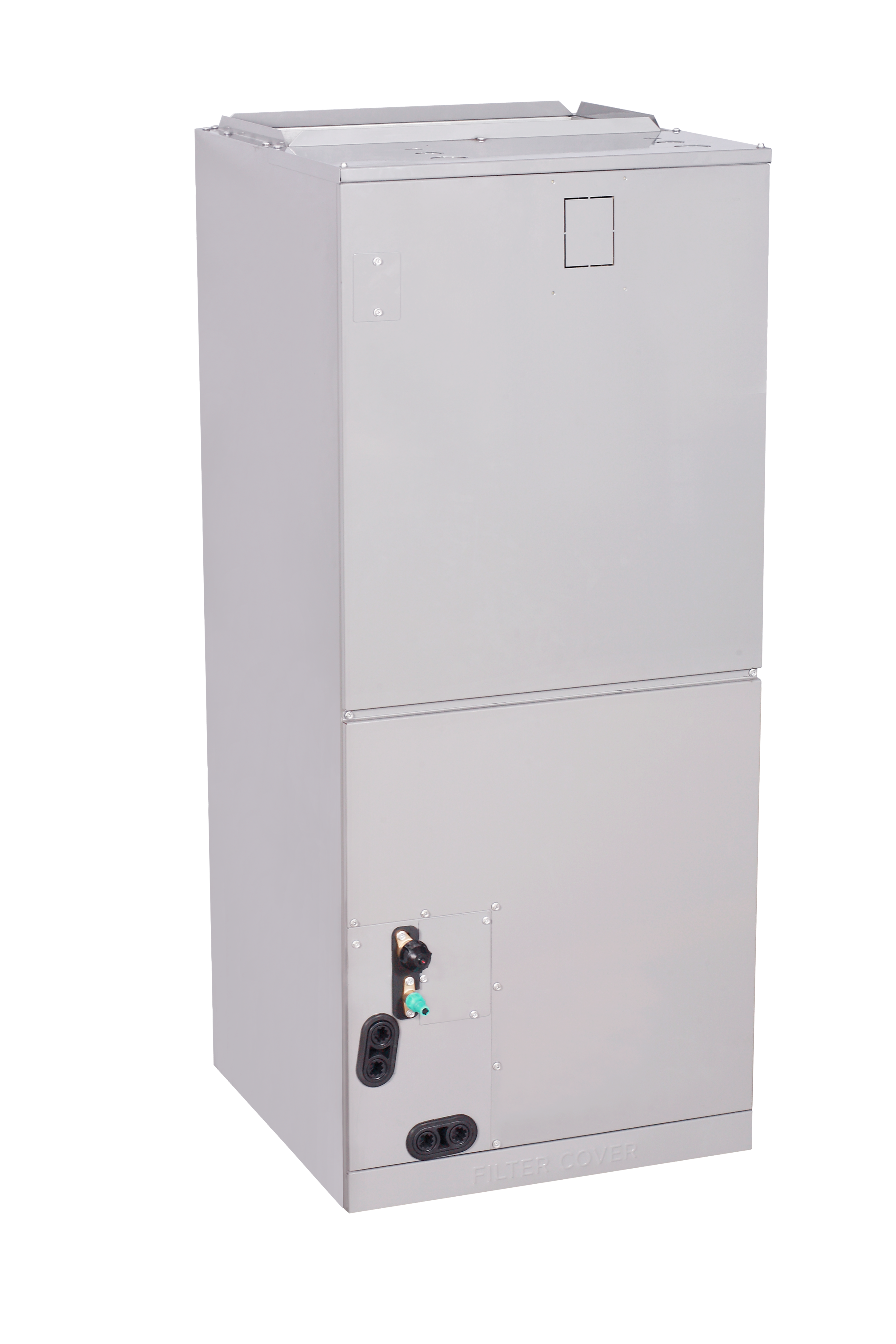

Midea EVOX (G2) 2.5 ton Air Handler R454B

High Efficiency Indoor Unit Structure
Model#: MAUHE-H30B-2A

  • Symmetric fan blower design

    • Enhanced airflow circulation

  • 4-way installation: Upflow, Downflow, Right, Left.

  • Compatible with 485 or 24V

    • Automatically identifying the control mode, no need for manual conversion.

  • Constant CFM ECM motor provides consistent airflow up to 0.8 in. w.c.

  • Electronic expansion valve (EEV) control

    • Better throttling for highly efficient operation.

  • Optional auxiliary heat kits available up to 25kW.

  • All-Aluminum Coil.

  • Quiet Operation

    • Down to 35 dB(A) level.


Technical Specifications

Refrigerant(ASHRAE)
R454B
Brand
Midea
Coil Type
Case
Colour
Gray
Connection-Liquid(OD)
3/8
Connection-Vapour/Gas(OD)
3/4
Unit Location
Indoor
Country of Origin
China
Product Length/Depth
21 in
Product Height
49 in
Product Weight
129 lbs
Product Width
21 in
System Type
AHU
Zone Type
Central ducted
Nominal Capacity
30,000
Tons
2.5

Documents

R454B Brochure

PDF

EVOX G2 Air Handler Brochure

PDF

EVOX User Manual

PDF

EVOX G2 2.5 ton AHU Submittal

PDF

EVOX R454B Air Handler Installation Manual

PDF
